Steelwater HEAVY Duty- 16 Long

Steelwater Heavy Duty Series Secure Storage Safe

Compact High-Strength Design | 1-Hour Fire Protection | 12-Gauge Steel

The Steelwater Heavy Duty Series Secure Storage Safe delivers professional-grade protection in a streamlined footprint, making it an excellent choice for securing valuables, equipment, documents, and sensitive materials where space efficiency matters. Constructed from 12-gauge steel and reinforced with advanced fire insulation, this model provides dependable protection against fire and unauthorized access.

With a reinforced door, advanced locking technology, and a thoughtfully designed interior, this Heavy Duty safe is built for long-term reliability in residential, workshop, or light commercial environments.

🔥 Fire Protection

• 60-minute fire rating at 1875°F

• 4⅞″ composite door with two layers of fireboard

• Double-layer fireboard protection in the walls, ceiling, floor, and door jambs

• Heat-activated expandable door seal expands up to 8× its thickness to help block heat, smoke, and water during fire exposure

🛡️ Security & Construction

• Heavy-duty 12-gauge steel body

• 10 total solid steel locking bolts

  • (7) 1½″ chrome-plated active bolts

  • (3) inactive bolts on the hinge side

  • Full four-sided bolt coverage

• Gear-driven lock and bolt system for increased resistance to prying, punching, and drilling

• Oversized drill- and ballistic-resistant hard plate protecting the lock, relocker, and internal mechanisms

• Internal spring-loaded relocking bolt activates if the lock is attacked or removed

• Drill-resistant protection for the emergency keyway

• Four reinforced ½″ anchor holes, backed by ¼″ steel plate, for secure floor mounting

🔐 Locking System (Standard)

• Chrome digital keypad with LED backlighting

• Durable capacitive-touch keypad

• Two programmable user codes (3–8 digits)

• Non-volatile memory retains settings during power loss

• External battery compartment

• Powered by one 9-volt alkaline battery

• Includes double-bitted emergency bypass key for access during power loss or EMP events

Optional Upgrade

• Biometric EMP-Proof Keypad

  • Three access methods: fingerprint, keypad, emergency key

  • Stores up to 200 fingerprints

  • One programmable numeric code (1–8 digits)

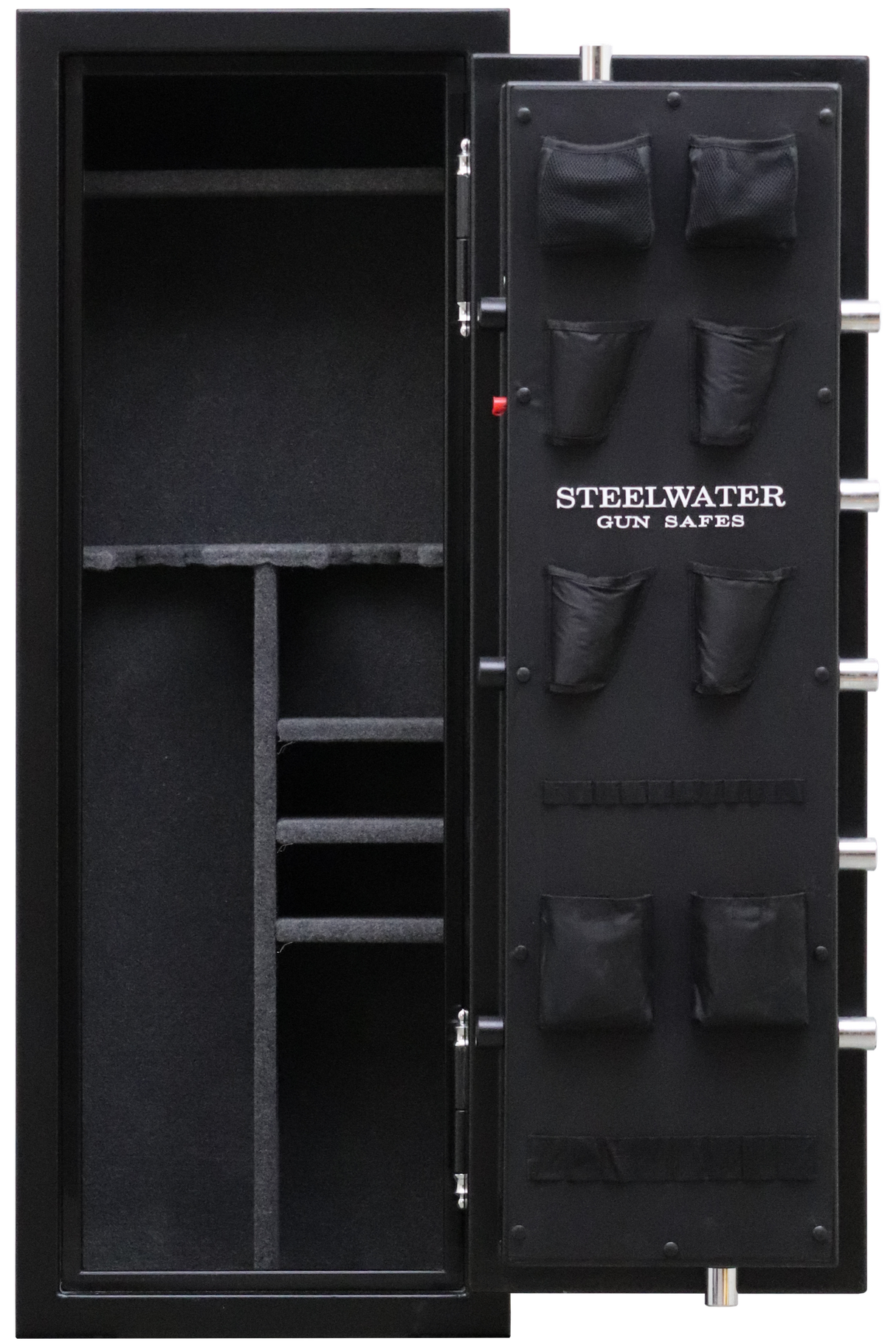

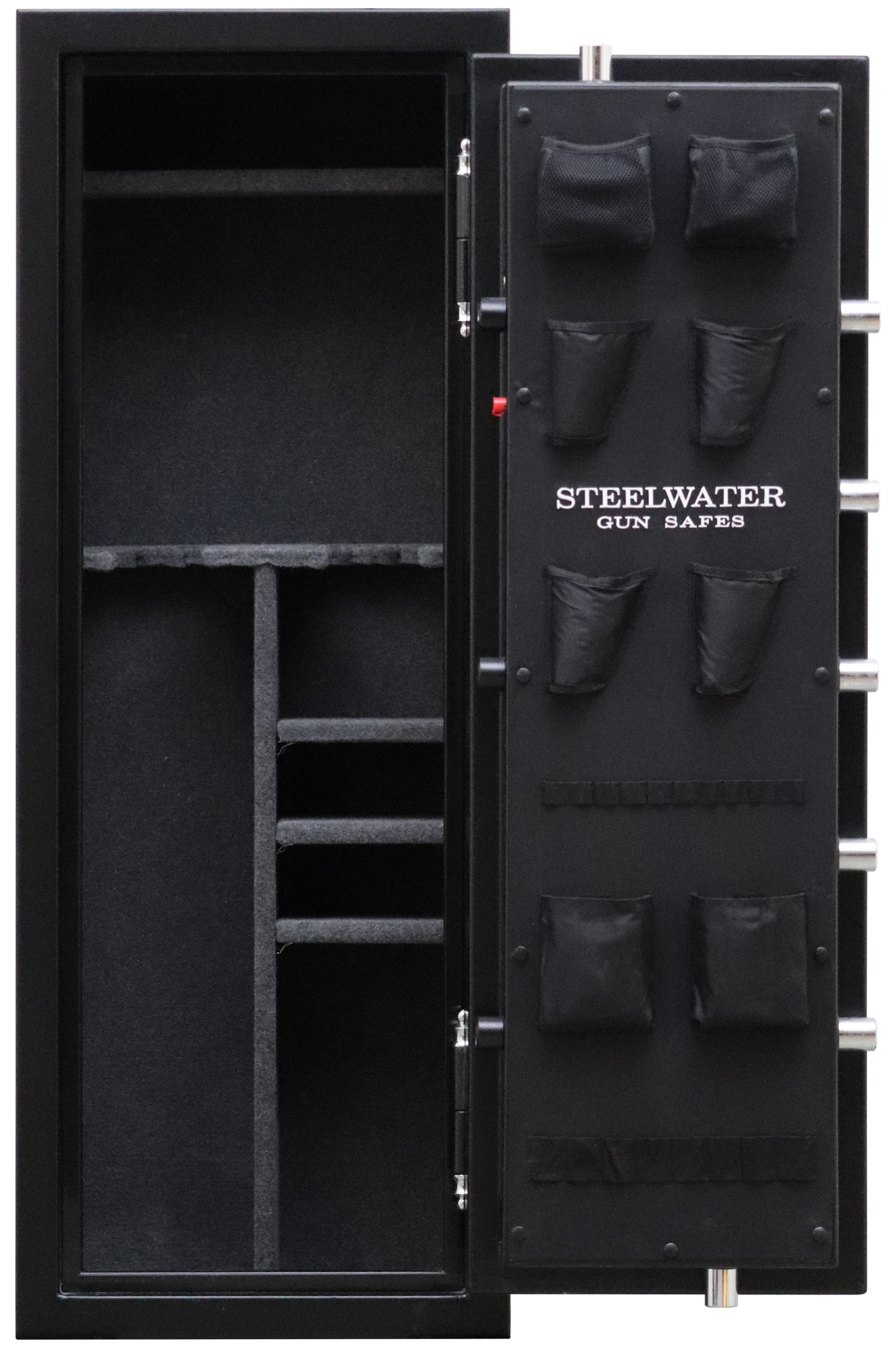

⭐ Interior & Convenience Features

• Fully upholstered gray interior

• Two-section vertical storage layout

• Four adjustable/removable shelves, including:

  • (1) Full-length shelf:
    19″ W × 7⅝″ D

  • (3) Small shelves:
    9″ W × 7¾″ D (right section only)

• Custom door organizer for accessories and small items

• Automatic LED interior lighting

• Includes 200-gram rechargeable silica-gel dehumidifier

• Rear access hole for optional electric dehumidifier rod

📐 Dimensions & Weight

Exterior Dimensions (H × W × D):
59″ × 22″ × 16″ (Add 3″ for handle)

Interior Dimensions (H × W × D):
56¼″ × 19¼″ × 12⅜″

Usable Interior Depth:
10″

Door Opening:
53¼″ H × 16¼″ W

Clearance:

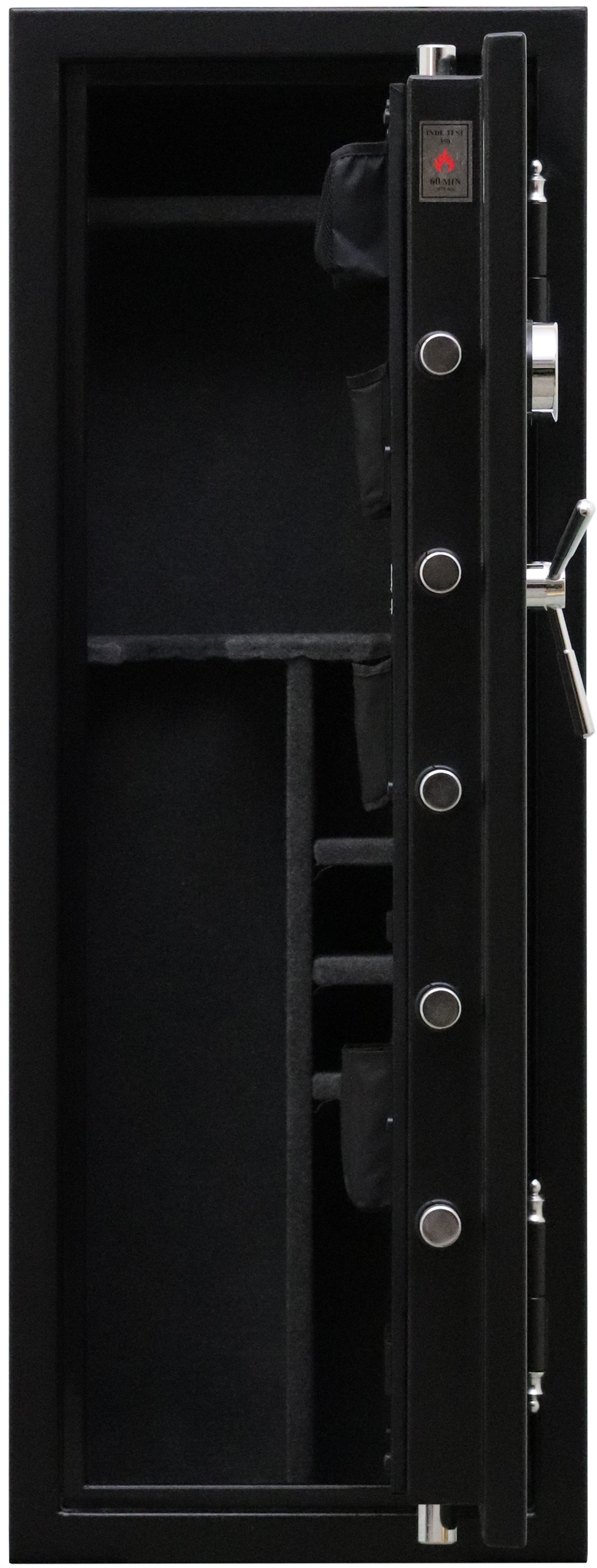

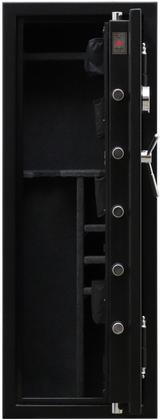

• Depth with door at 90°: 34½″

• Width with door at 180°: 38″

Weight: 380 lbs

🎨 Finish & Hardware

• Semi-gloss textured black powder-coat finish

• Silver pin striping

• Polished chrome tri-spoke handle
